Process
01
research

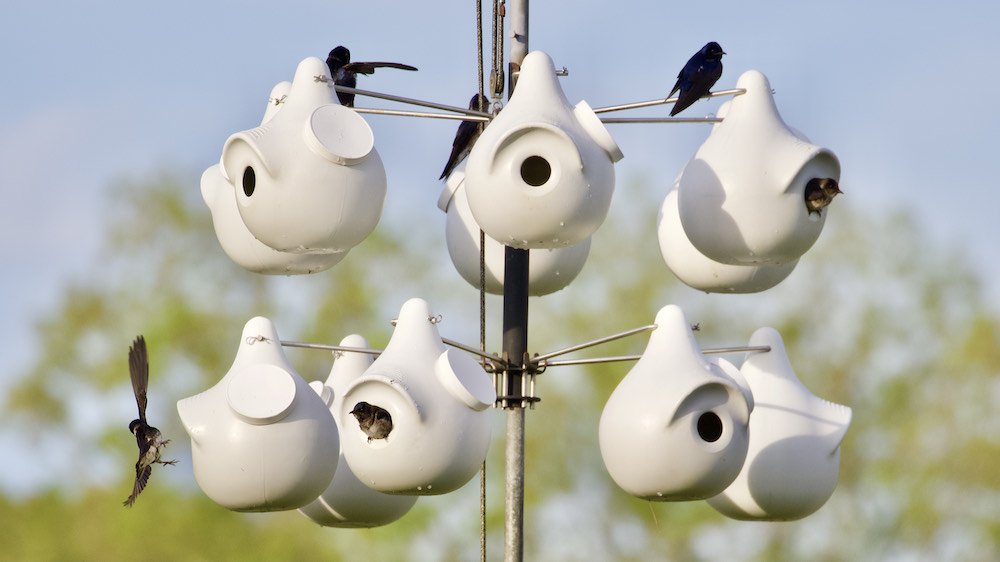

Purple Martins are colonial nesters that rely on communal living for safety and hunting. Because their survival depends on humans for seasonal maintenance and open flight paths near water, the design needed to support high-density colonies, allow for easy cleaning, and function effectively in open-air environments.
03
05
Purple Martin Pods
sustainable bird house
3 Week Project
2025/12
The Ohio State University, Department of Design
Objective: design an appearance model birdhouse for a specific bird species, developed in alignment with EcoBirdy’s brand values and aesthetic.
Restrictions: fits within 12” x 12” x 12”
_______________________________________________________________________________________________________
sketch models

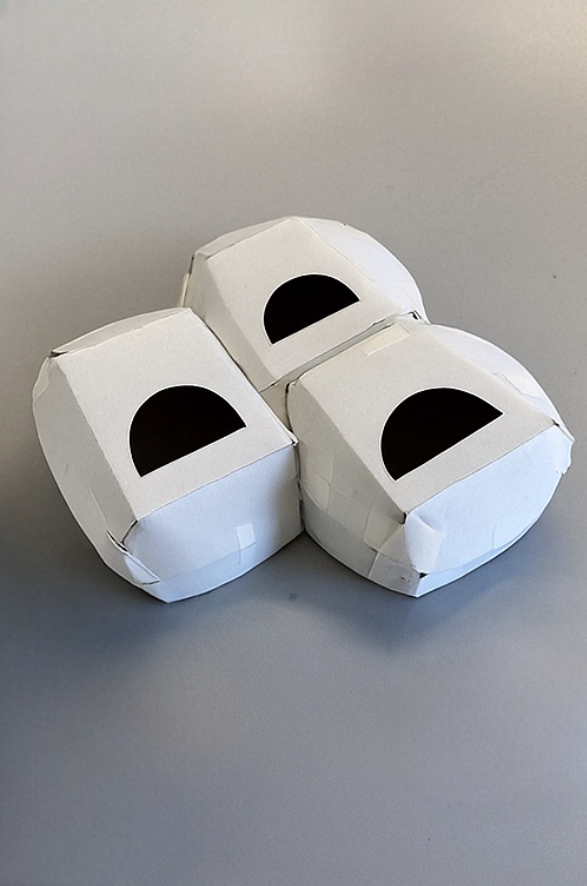

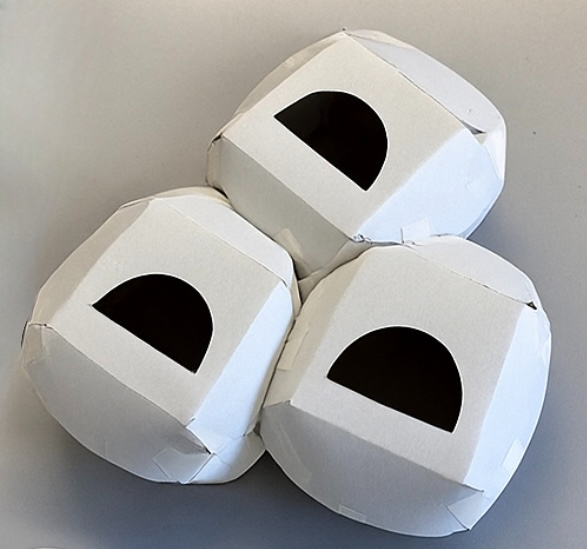

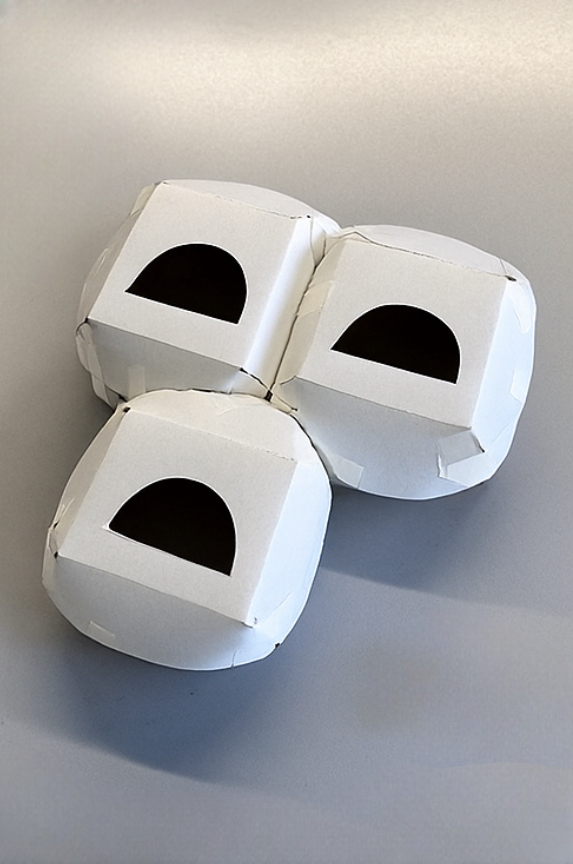

I selected the three-pod configuration for its structural balance and visual cohesion. Crescent-shaped openings were integrated as a functional necessity to deter predators. I tested the scale and pod layout through a series of cardboard mock-ups.
material exploration

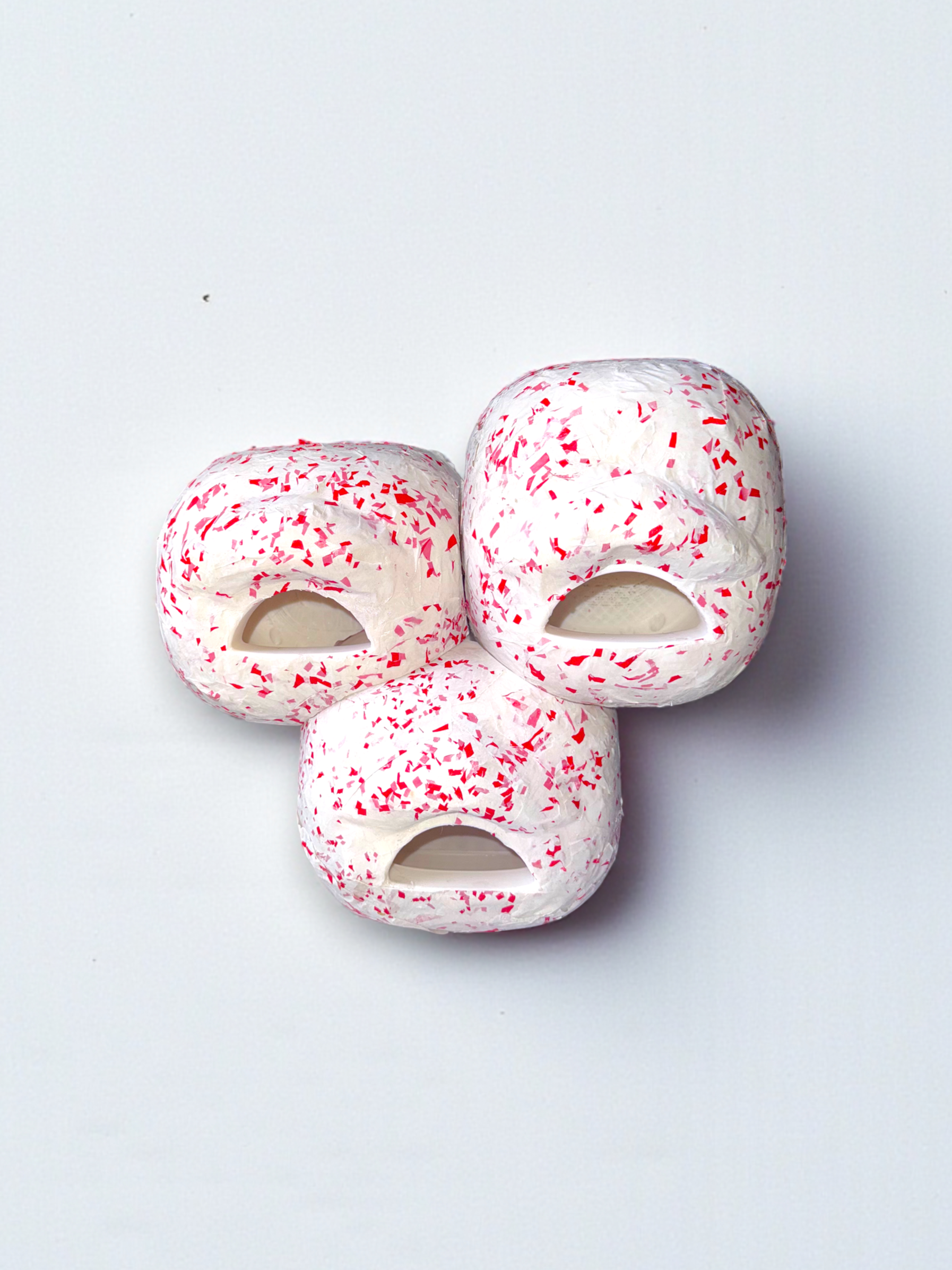

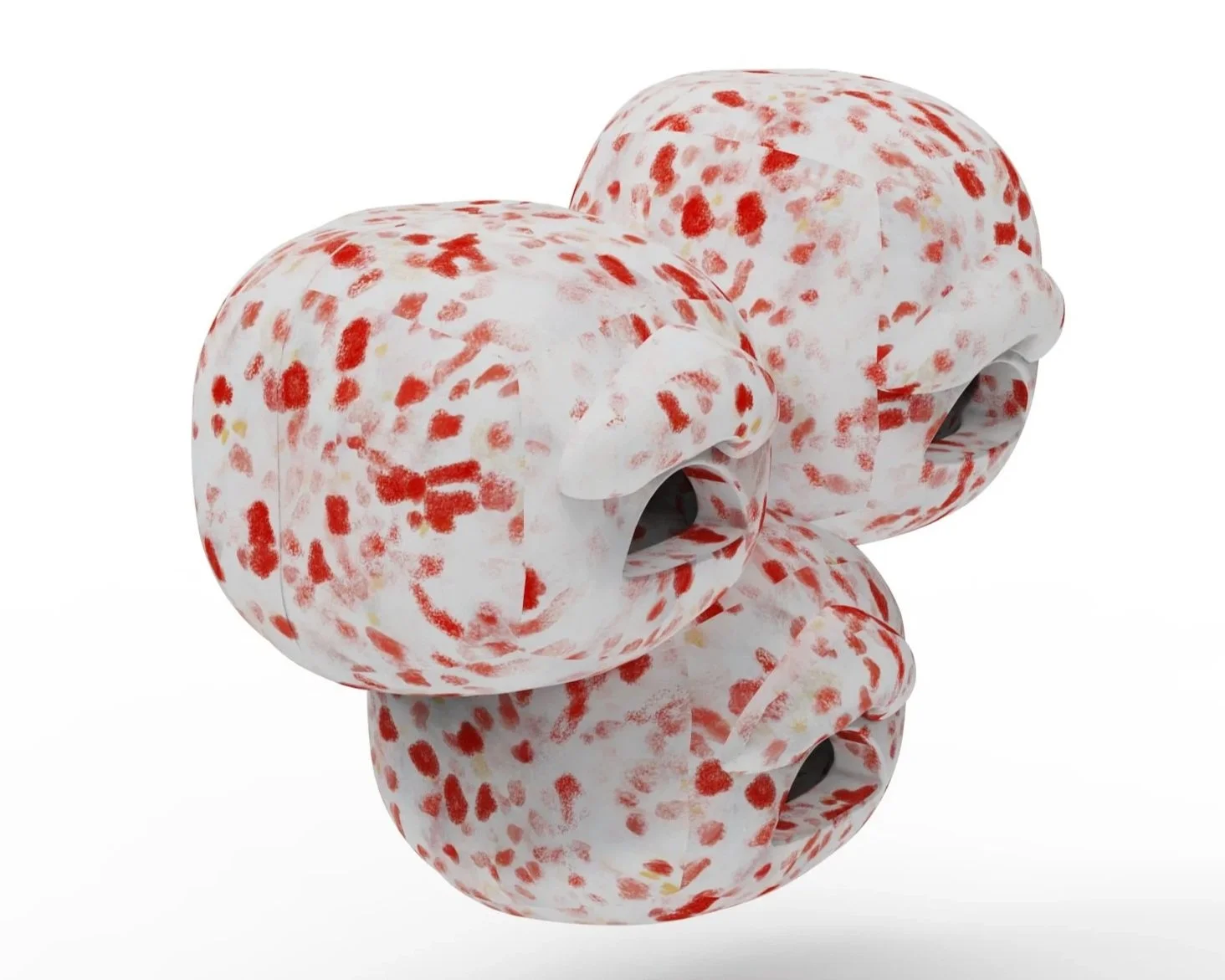

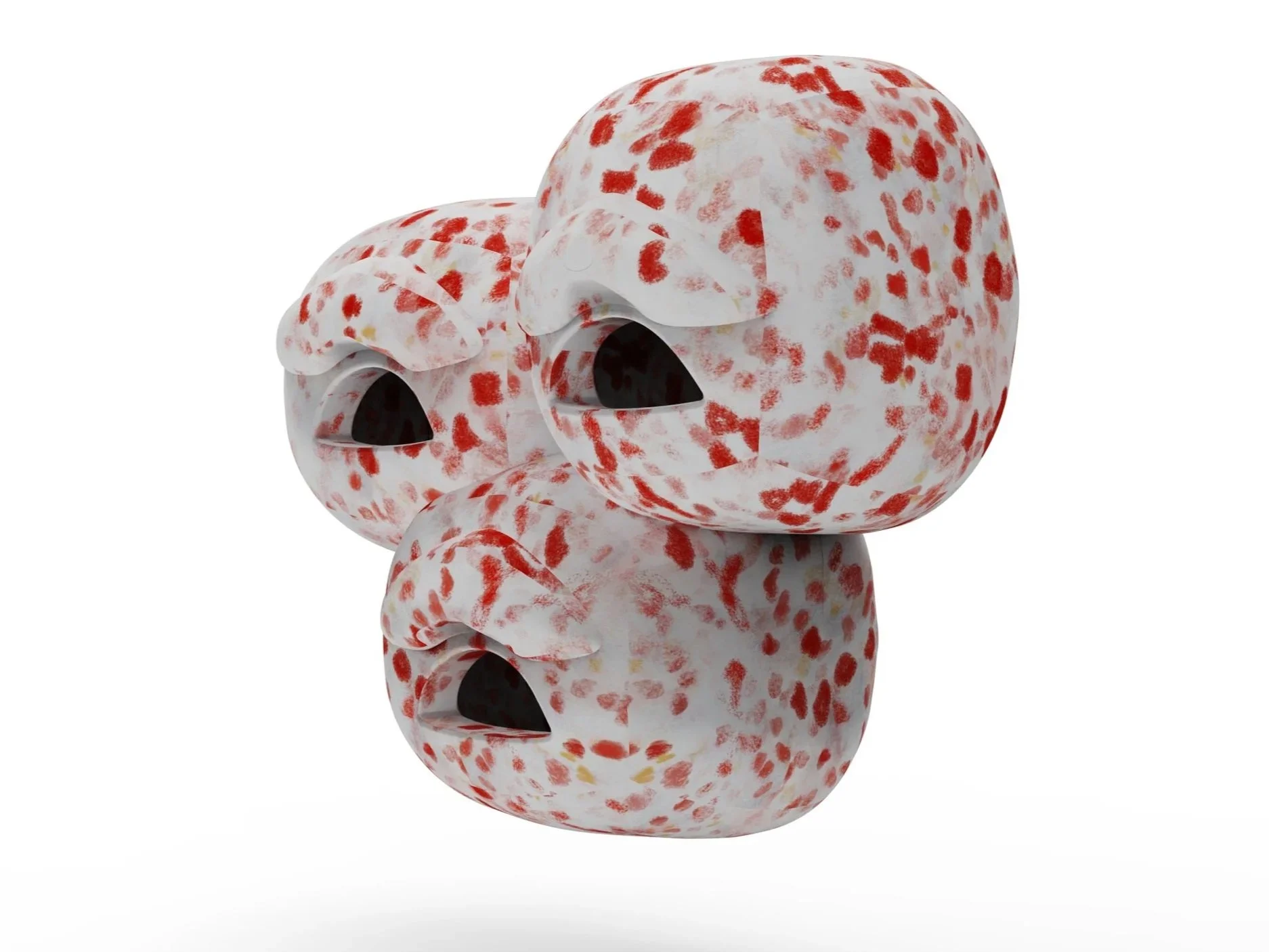

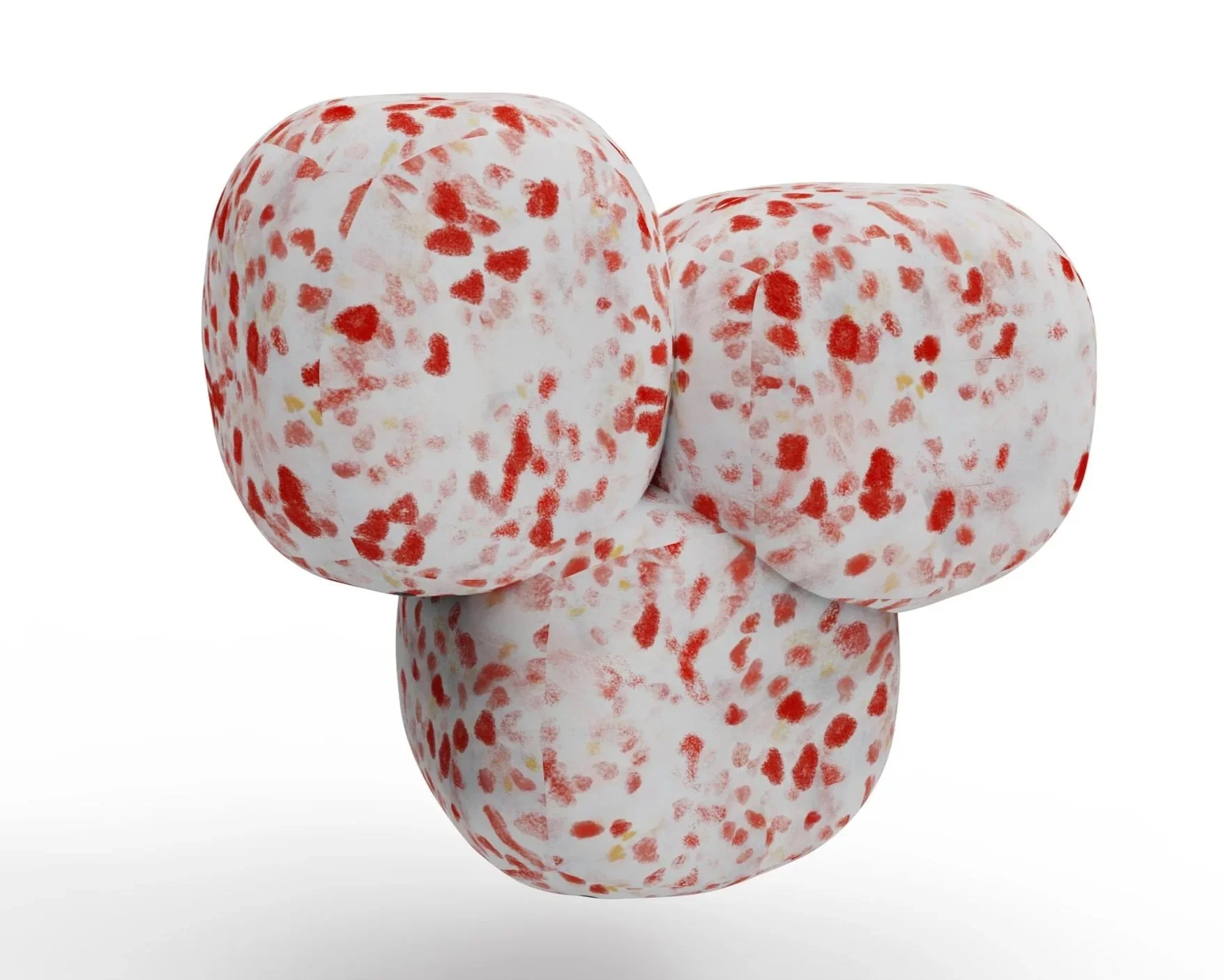

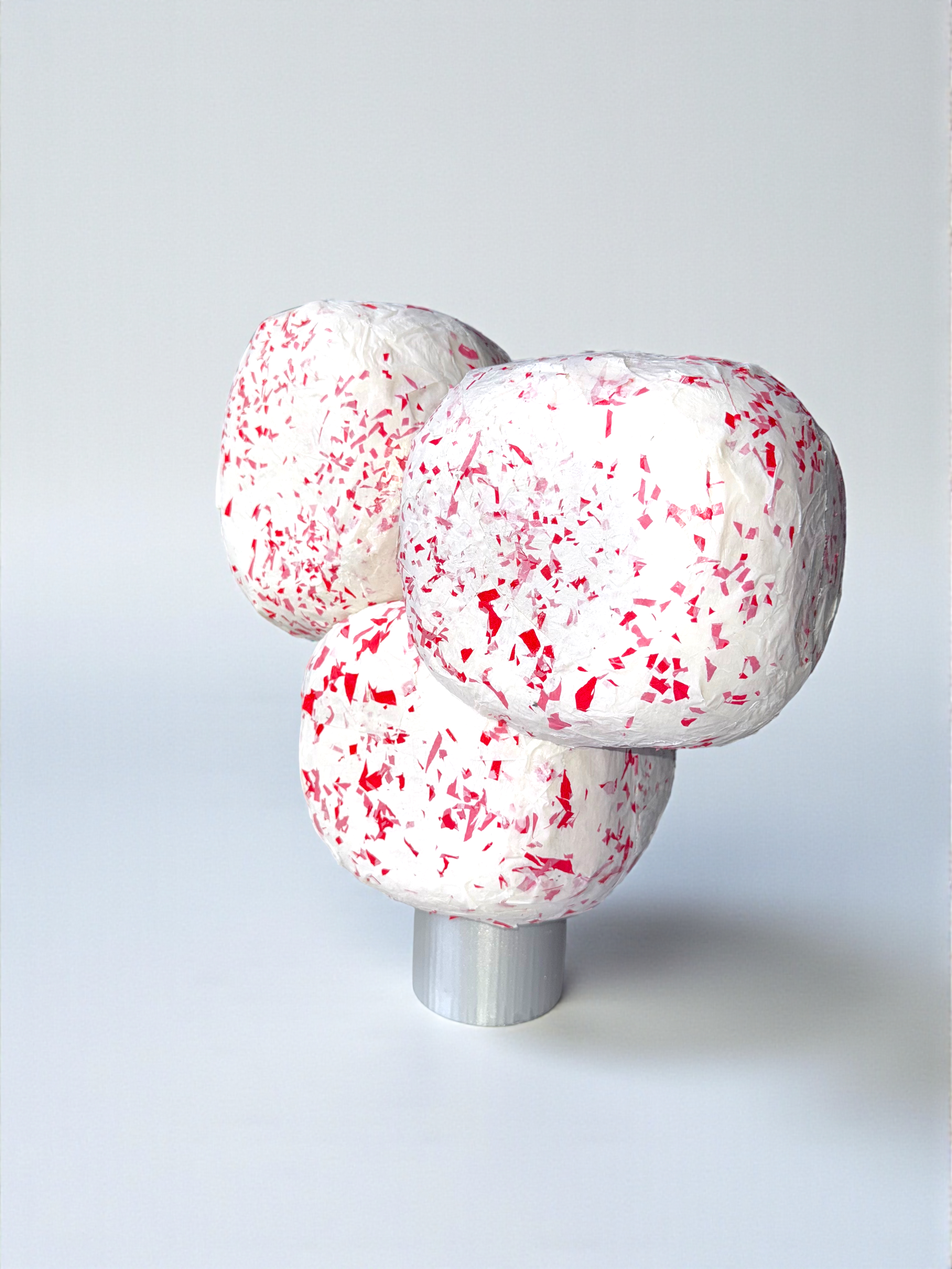

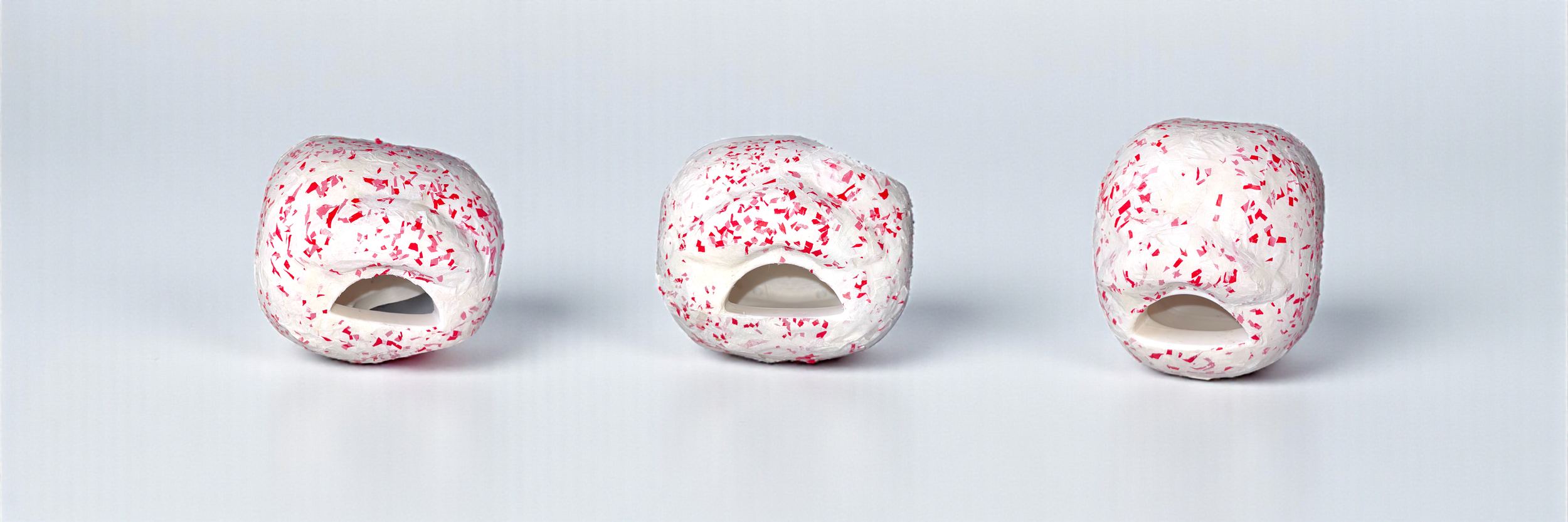

Final Images

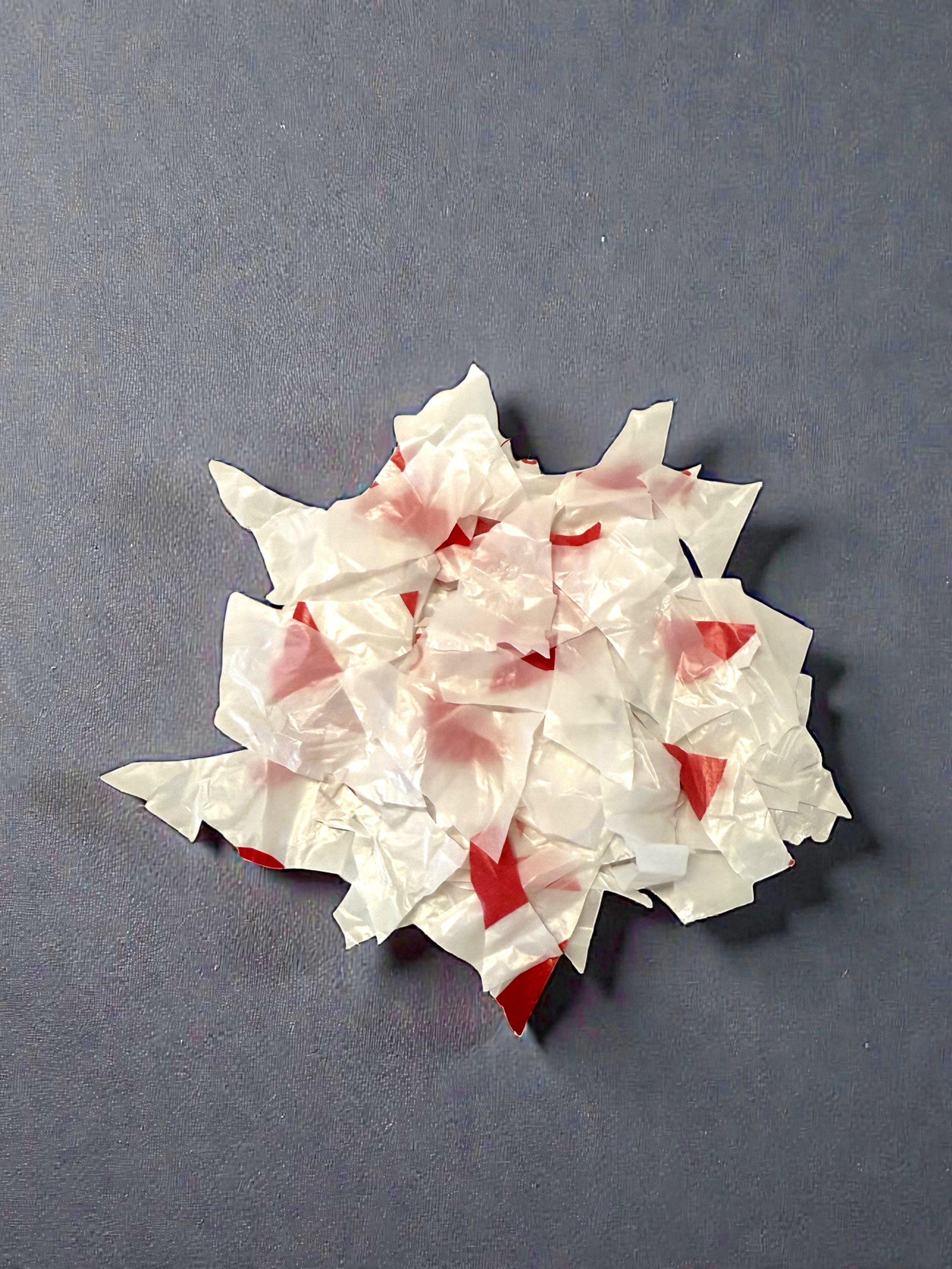

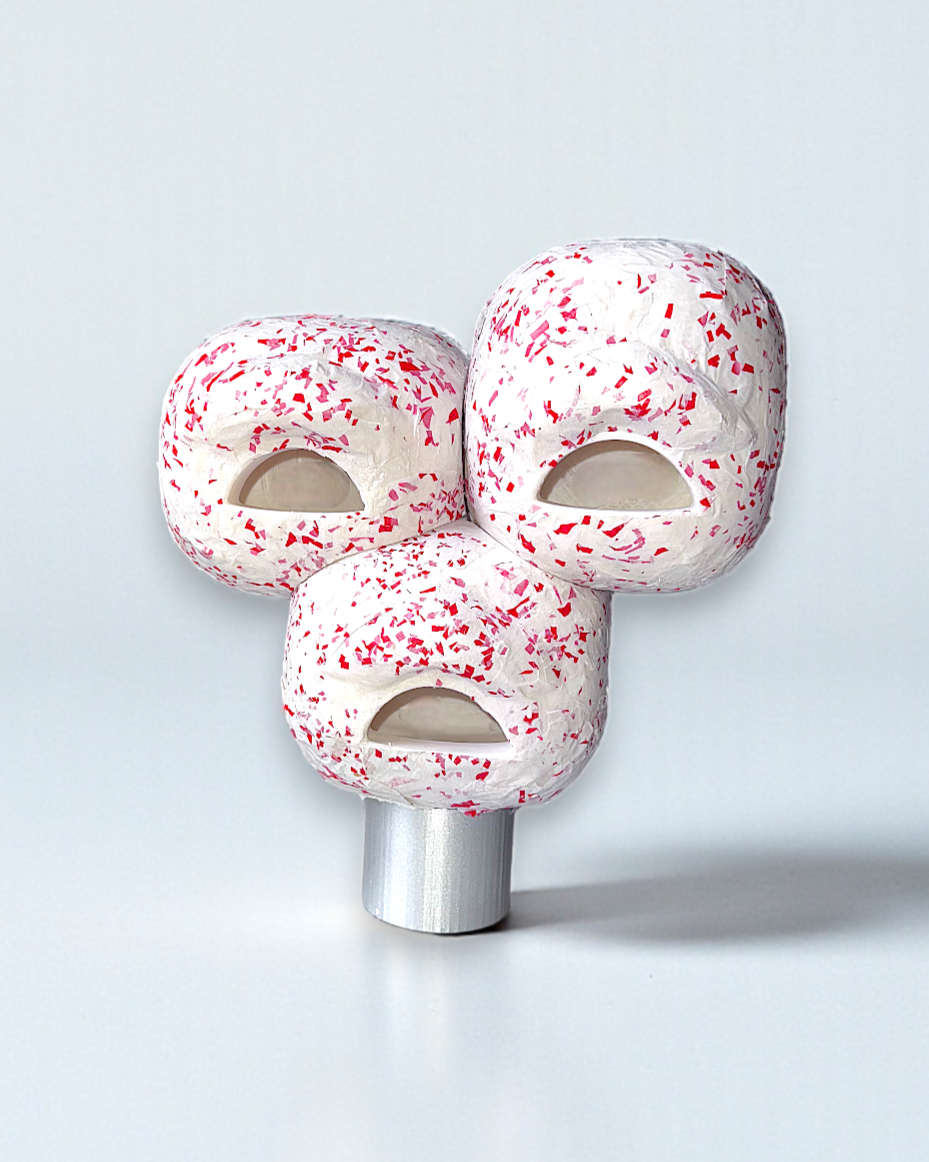

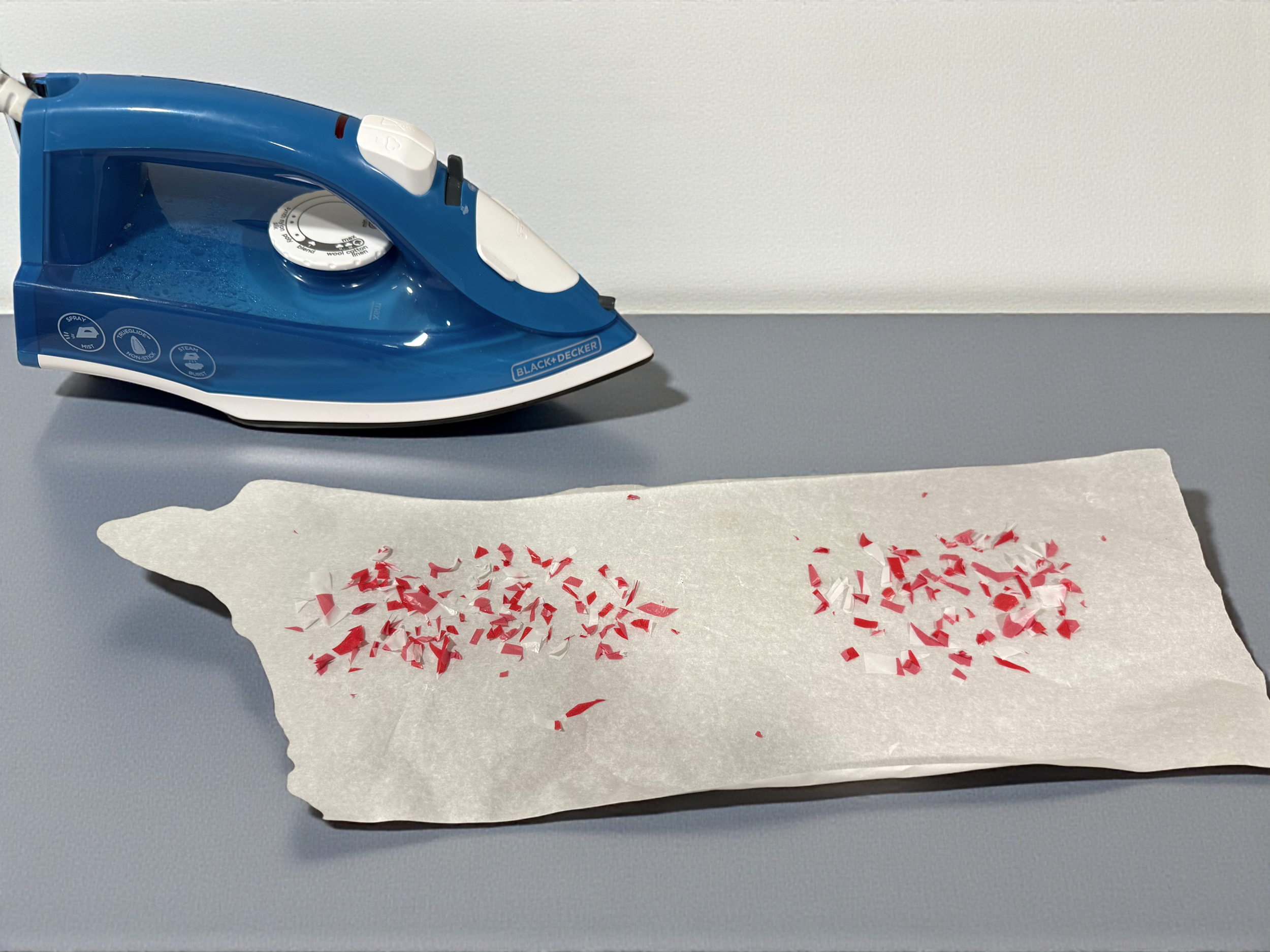

To replicate the tactile quality of recycled plastic, I conducted material experiments by fusing layers of retail bags into flexible sheets. I ended up using Target plastic bags, because they were thin enough to be cut into small pieces and fused together with heat from an iron, producing thin, flexible sheets with the desired speckled pattern. This layer was applied to the 3D-printed core to look like the intended finish. For the final render, I digitized this texture in Procreate to ensure visual consistency in KeyShot.

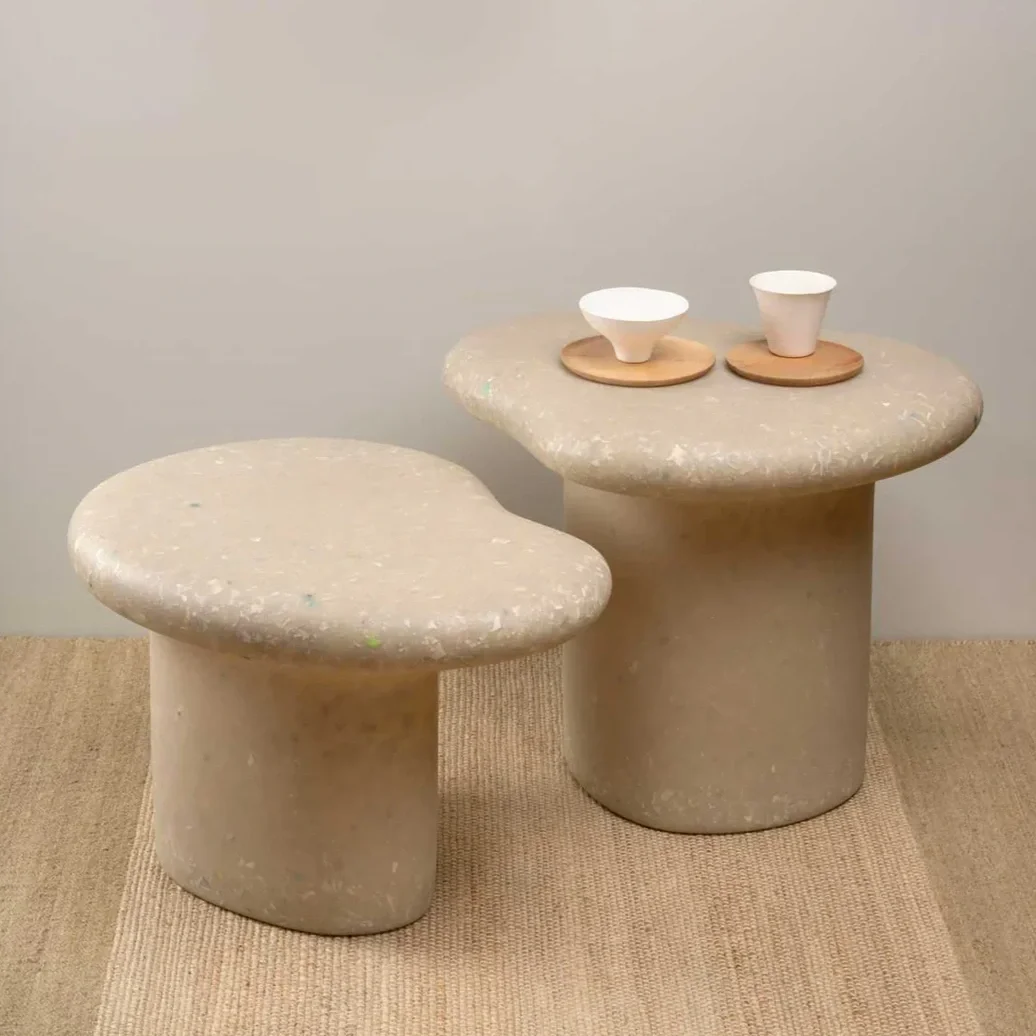

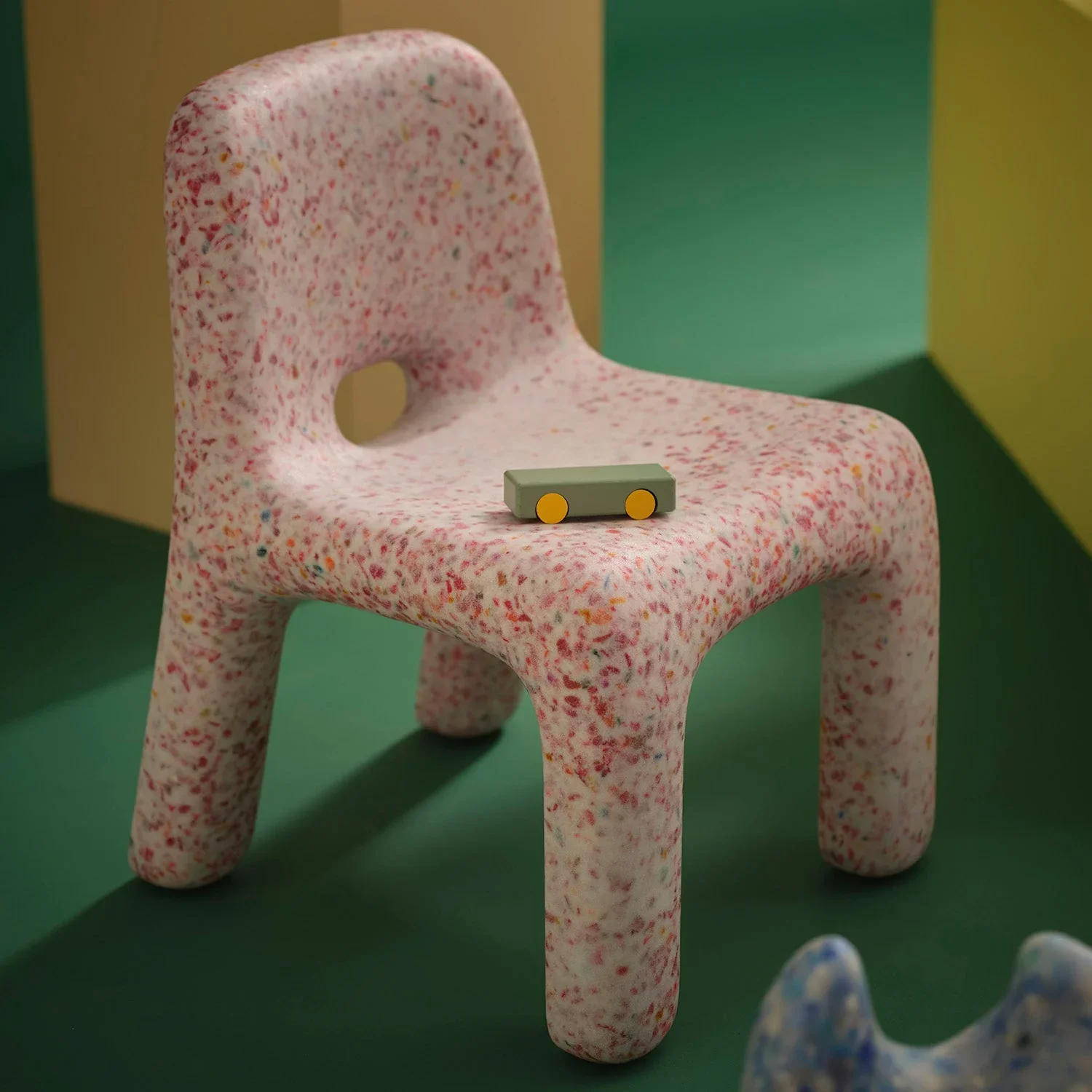

EcoBirdy transforms discarded ABS plastic toys into high-quality sustainable furniture. This recycling process creates a signature speckled aesthetic, turning material history into a distinctive visual identity. The brand's design language is defined by muted palettes, soft organic forms, and fully rounded edges—prioritizing minimalism over unnecessary decoration.
To accommodate the birds' social nature within the project's size constraints, I developed a modular system. By designing a single unit capable of housing 3–4 birds, the system becomes scalable; users can cluster multiple units to support larger colonies of 20–50 birds.
______________________________________________________________________
04
02

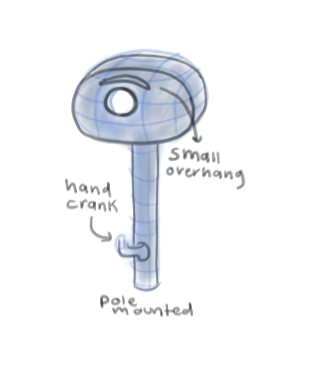

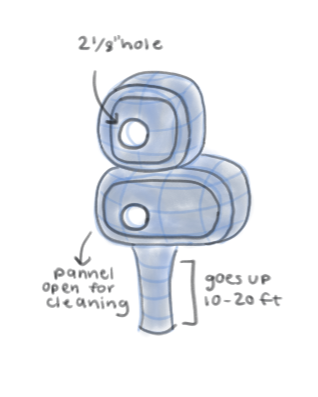

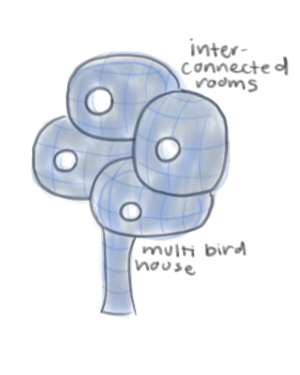

sketches
3d development

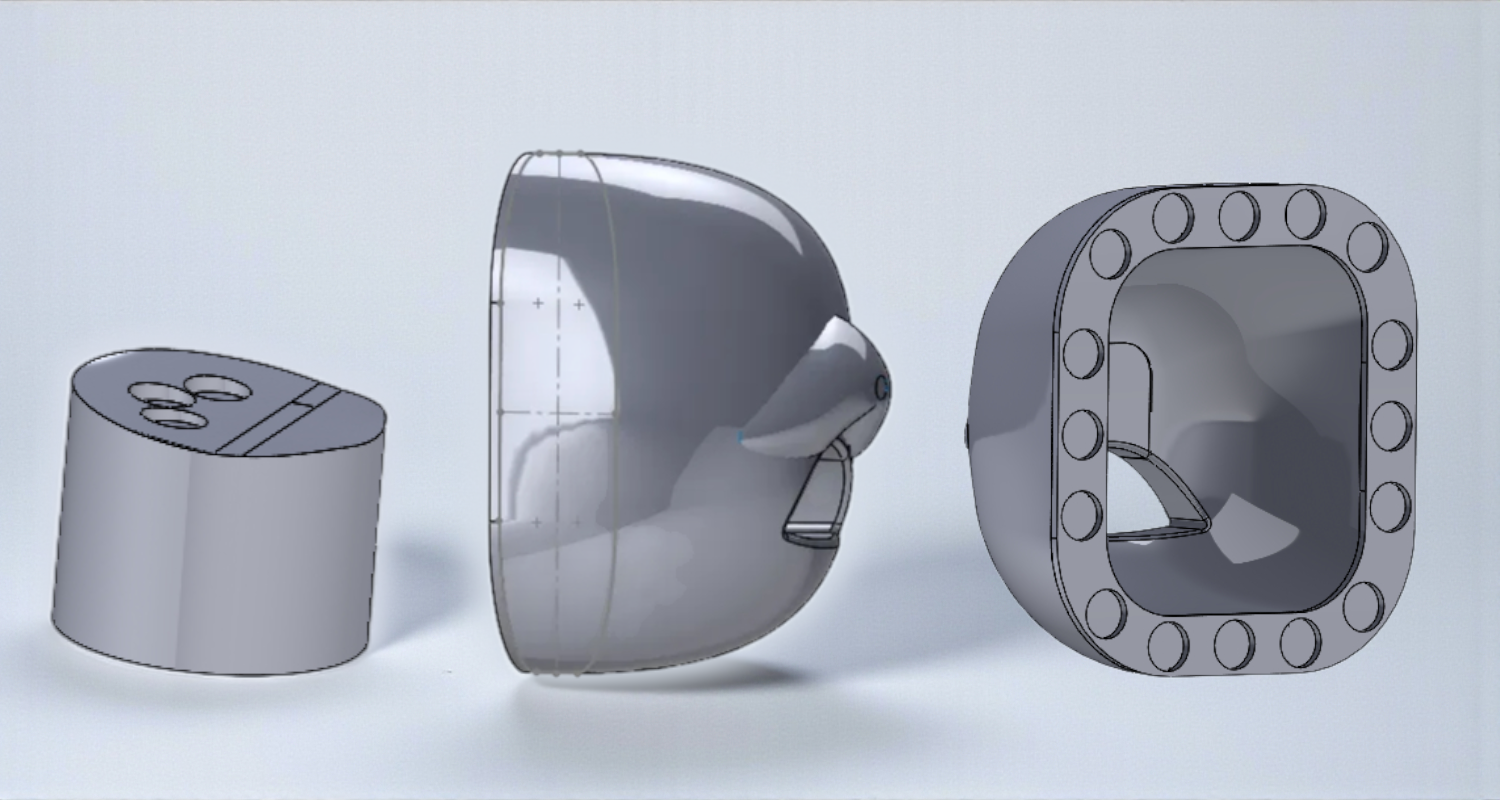

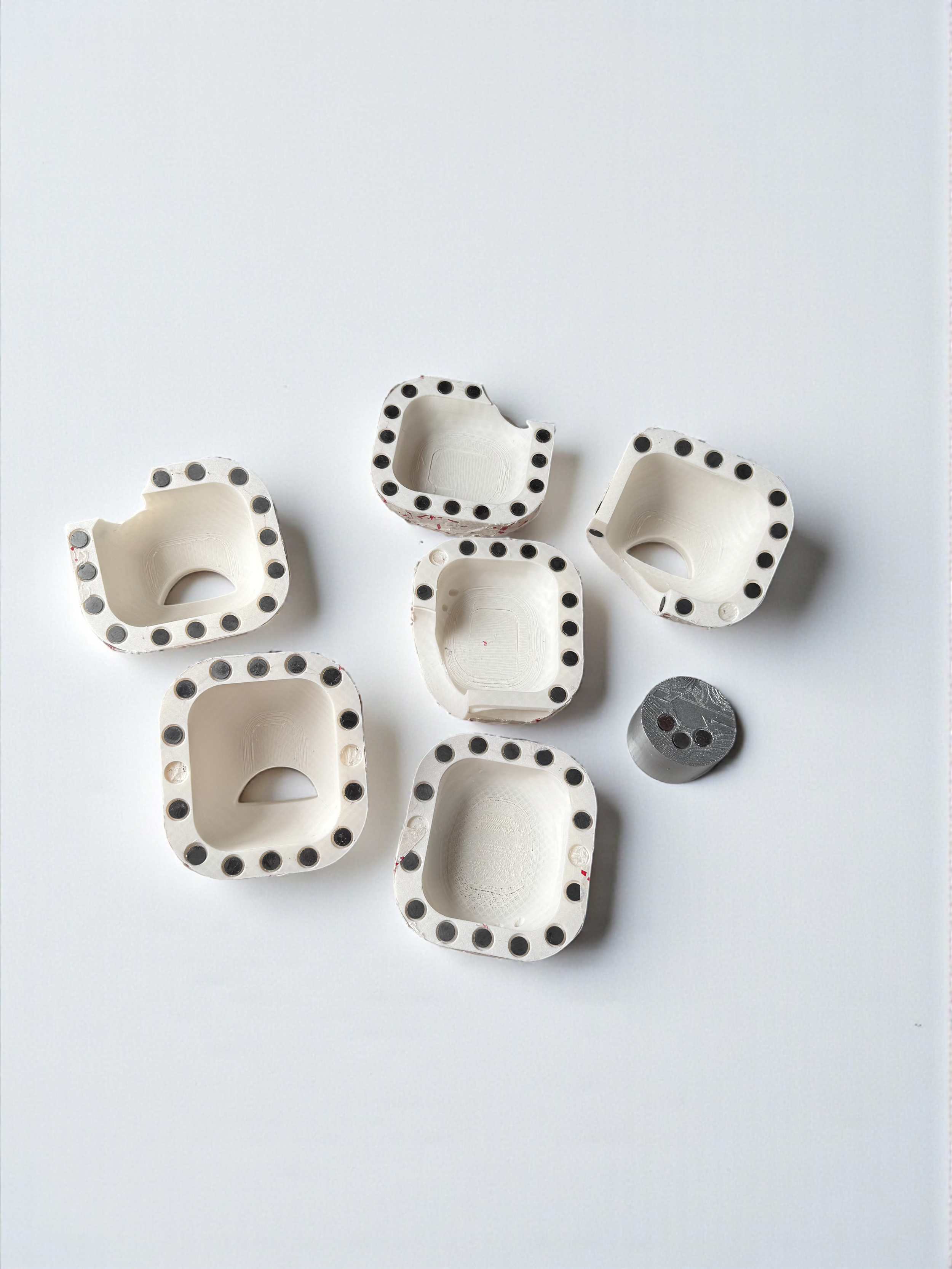

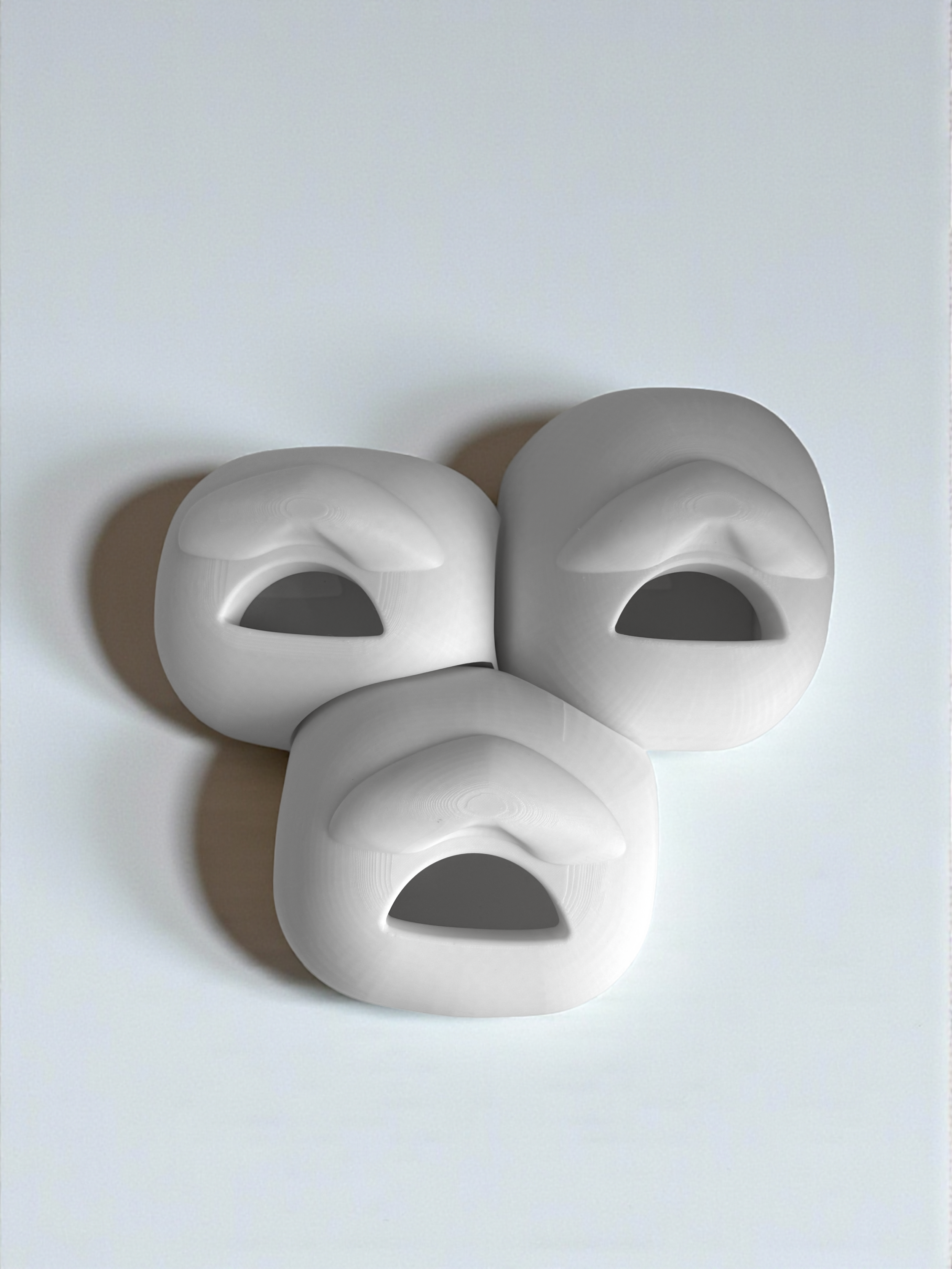

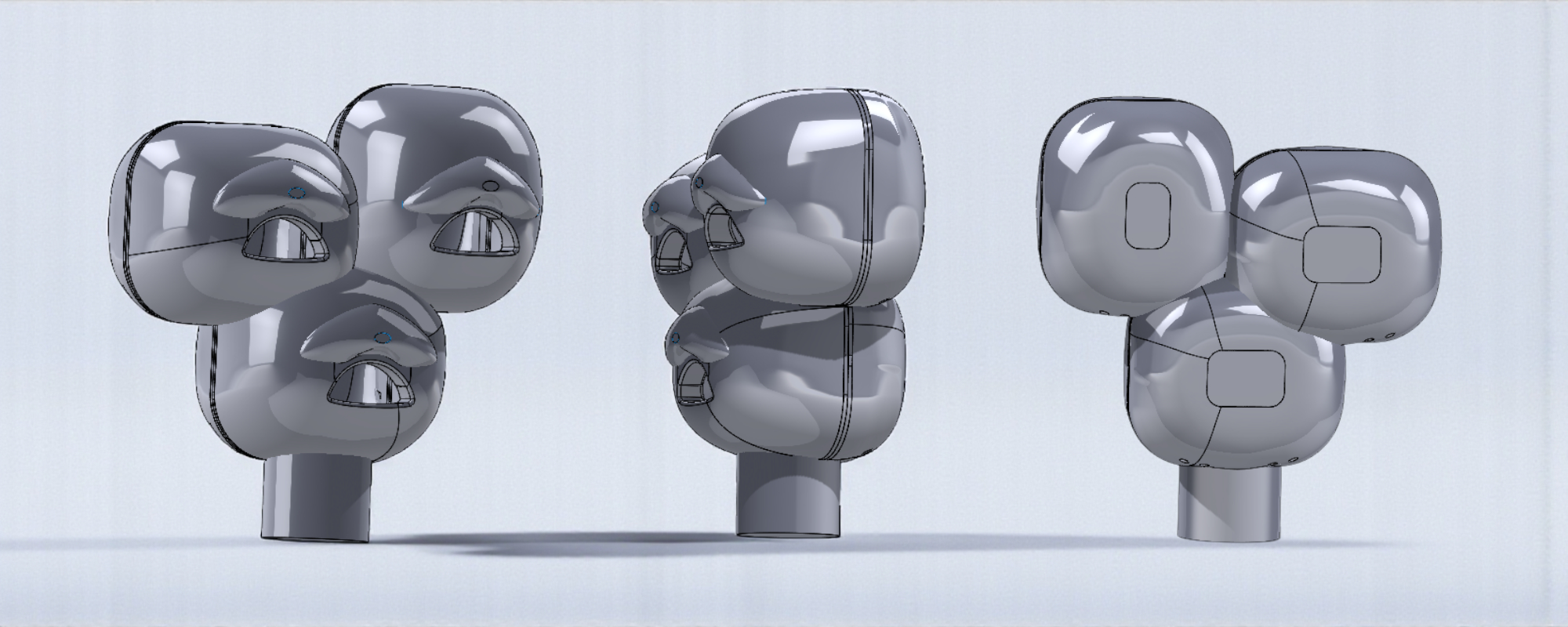

Modeled in SolidWorks, the design prioritizes maintenance and weather resistance. Magnetic connection points allow for tool-free disassembly during seasonal cleaning. The form features organic overhangs and integrated drainage to protect occupants from rain and predators.
